Shanghai Outevo Machinery Co., Ltd. is a professional supplier of construction machinery components, collaborating with multiple brands. As a well-known brand, Sany excavator, our company is its exclusive overseas agent.

As the core component of hydraulic systems, plunger pumps have unique functions in energy conversion, pressure generation, and other aspects

As the exclusive overseas agent of Sany brand, we sell plunger pumps that are compatible with Sany excavator models.

SY215C、SY200、SY200CSIC、SY75-9、SY135、SY335/SY365、SY485/SY500/SY550、SY335BH-S、SY200C-S、JS150S

P/N:K3VL80 、K3V63DT – 9N、 K5V160DTH1X4R – 9T16 – BV、K3VL28 、HP3V140/AV1XRSM-L1/1-E0-TE2A1、MVP30.20D-04S5-LMD/MB-N-RNO-G

Specification	Symbol	Unit	32	45
Output volume	Vg	mL/r	31.5	44.1
Maximum speed	n	r/min	1365	2400
maximum flow	qvmax	L/min	43	105.8
Overflow valve set pressure (standard)	P1	bar	240	215
Release brake pressure	P2	bar	≥ 15	≥ 15
brake torque	T1	N·m	≥ 145	177
weight	G	kg	20	27

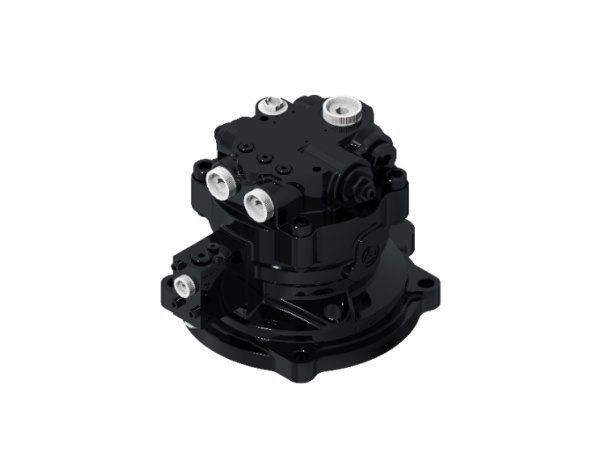

Slant disc variable displacement piston motor, suitable for excavator walking drive;
Install buffer overflow valve, balance valve, mechanical brake, with high and low speed switching function;
It can effectively reduce the impact in work and has strong shock resistance.
